Hive Mini Specs

Hive Mini Controller

The PassiveLogic Hive Mini controller, paired with modular Cell I/O devices, handles remote equipment control and extends the reach of the PassiveLogic Hive autonomous building ecosystem. It can be deployed anywhere to avoid home-run wiring, supports universal software-defined input terminals, relays, power control, industrial networking, and includes a built-in differential pressure sensor for VAV and AHU applications.

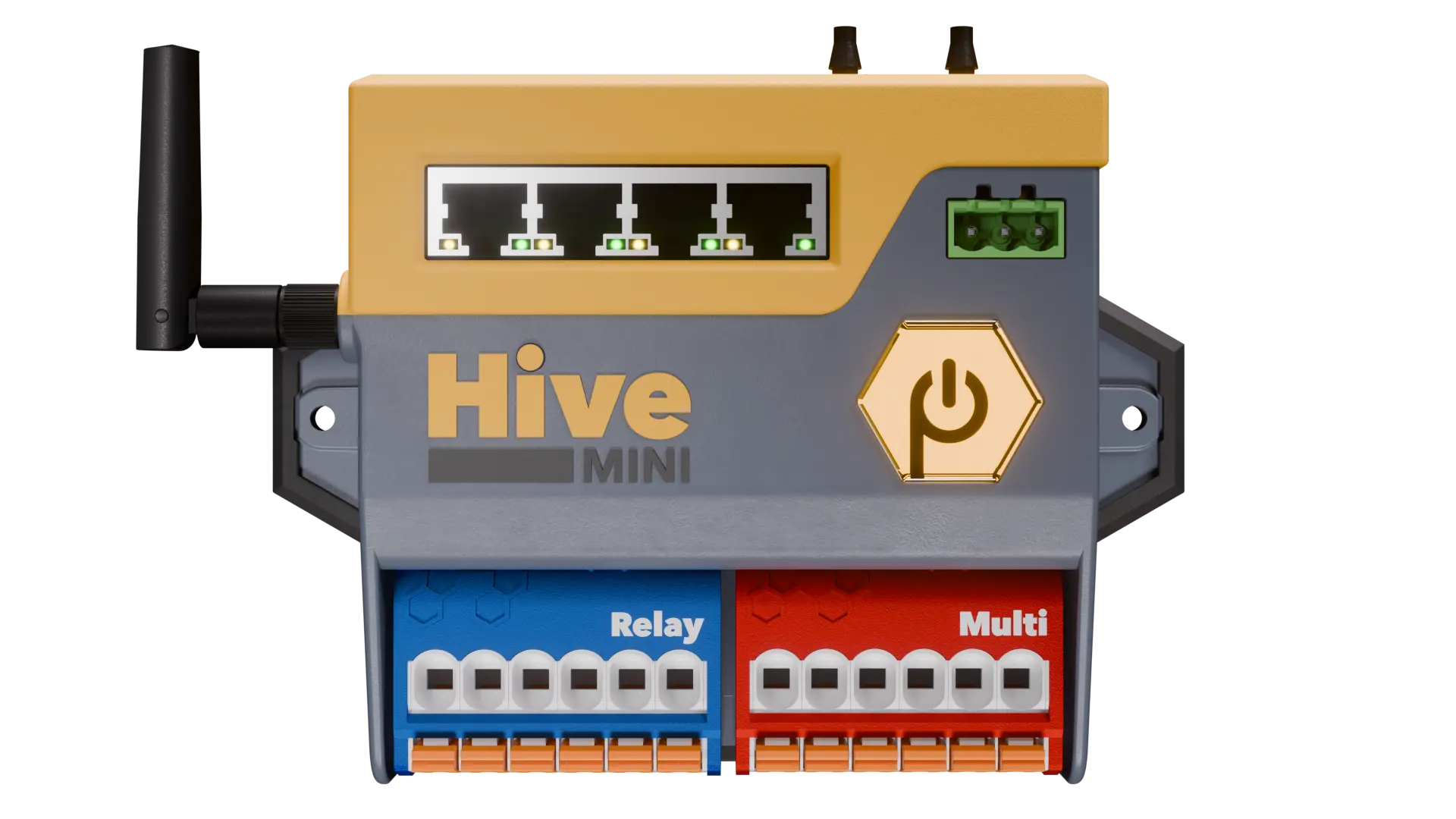

Hive Mini Controller

Network

Wireless
Bluetooth range: up to 100 ft (30 m)
Ethernet
4-port industrial switch (10/100MB), private network

Connectivity Options

Protocols
BACnet/IP, Modbus TCP
Protocols w/Multi Cell
1-Wire protocol
Wireless antenna
SMA-compatible antenna included

Onboard Sensing

Differential pressure sensor
Range: +/- 500 Pa Accuracy: 1.5% across full range (+/- 15 Pa) Tubing: Supports 1/4 inch (6.35 mm), 1/16 inch (1.59 mm) wall thickness, plenum-rated 1219 FR (94V-2)

Cell module bays

Cell module bays
2 Cell module bays, compatible with PassiveLogic Cell modules
Multi Cell module
6 multi-function terminals, universal software-defined I/O
Relay Cell module
3 single-pole, single-throw, normally open relays

Power

Power draw
Power draw Up to 2A @ 24VAC nominal. Use ≧50VA supply
Input voltage
24VAC, connector accepts 12–20 AWG

Environmental

Operating temperature
14 to 122°F (-10 to 50°C)
Storage temperature
-4 to 122°F (-20 to 50°C)

Mechanical

Height | Width | Depth
4.63 in (117.72 mm) | 5.91 in (150.2 mm) | 1.82 in (46.29 mm)
Weight
6.70 oz (190 g)
Surface mount
Use fasteners appropriate for the surface
Operating clearances
Top: 1.5 in (38.1 mm), for dP tubing bend radius Bottom: 2.5 in (63.5 mm), for removing Cell modules

Dimensions

Dimensions

Hive Mini Specs

Hive Mini Controller

The PassiveLogic Hive Mini controller, paired with modular Cell I/O devices, handles remote equipment control and extends the reach of the PassiveLogic Hive autonomous building ecosystem. It can be deployed anywhere to avoid home-run wiring, supports universal software-defined input terminals, relays, power control, industrial networking, and includes a built-in differential pressure sensor for VAV and AHU applications.

Hive Mini Controller

Network

Wireless
Bluetooth range: up to 100 ft (30 m)
Ethernet
4-port industrial switch (10/100MB), private network

Connectivity Options

Protocols
BACnet/IP, Modbus TCP
Protocols w/Multi Cell
1-Wire protocol
Wireless antenna
SMA-compatible antenna included

Onboard Sensing

Differential pressure sensor
Range: +/- 500 Pa Accuracy: 1.5% across full range (+/- 15 Pa) Tubing: Supports 1/4 inch (6.35 mm), 1/16 inch (1.59 mm) wall thickness, plenum-rated 1219 FR (94V-2)

Cell module bays

Cell module bays
2 Cell module bays, compatible with PassiveLogic Cell modules
Multi Cell module
6 multi-function terminals, universal software-defined I/O
Relay Cell module
3 single-pole, single-throw, normally open relays

Power

Power draw
Power draw Up to 2A @ 24VAC nominal. Use ≧50VA supply
Input voltage
24VAC, connector accepts 12–20 AWG

Environmental

Operating temperature
14 to 122°F (-10 to 50°C)
Storage temperature
-4 to 122°F (-20 to 50°C)

Mechanical

Height | Width | Depth
4.63 in (117.72 mm) | 5.91 in (150.2 mm) | 1.82 in (46.29 mm)
Weight
6.70 oz (190 g)
Surface mount
Use fasteners appropriate for the surface
Operating clearances
Top: 1.5 in (38.1 mm), for dP tubing bend radius Bottom: 2.5 in (63.5 mm), for removing Cell modules

Dimensions

Dimensions

Hive Mini Specs

Hive Mini Controller

The PassiveLogic Hive Mini controller, paired with modular Cell I/O devices, handles remote equipment control and extends the reach of the PassiveLogic Hive autonomous building ecosystem. It can be deployed anywhere to avoid home-run wiring, supports universal software-defined input terminals, relays, power control, industrial networking, and includes a built-in differential pressure sensor for VAV and AHU applications.

Hive Mini Controller

Network

Wireless
Bluetooth range: up to 100 ft (30 m)
Ethernet
4-port industrial switch (10/100MB), private network

Connectivity Options

Protocols
BACnet/IP, Modbus TCP
Protocols w/Multi Cell
1-Wire protocol
Wireless antenna
SMA-compatible antenna included

Onboard Sensing

Differential pressure sensor
Range: +/- 500 Pa Accuracy: 1.5% across full range (+/- 15 Pa) Tubing: Supports 1/4 inch (6.35 mm), 1/16 inch (1.59 mm) wall thickness, plenum-rated 1219 FR (94V-2)

Cell module bays

Cell module bays
2 Cell module bays, compatible with PassiveLogic Cell modules
Multi Cell module
6 multi-function terminals, universal software-defined I/O
Relay Cell module
3 single-pole, single-throw, normally open relays

Power

Power draw
Power draw Up to 2A @ 24VAC nominal. Use ≧50VA supply
Input voltage
24VAC, connector accepts 12–20 AWG

Environmental

Operating temperature
14 to 122°F (-10 to 50°C)
Storage temperature
-4 to 122°F (-20 to 50°C)

Mechanical

Height | Width | Depth
4.63 in (117.72 mm) | 5.91 in (150.2 mm) | 1.82 in (46.29 mm)
Weight
6.70 oz (190 g)
Surface mount
Use fasteners appropriate for the surface
Operating clearances
Top: 1.5 in (38.1 mm), for dP tubing bend radius Bottom: 2.5 in (63.5 mm), for removing Cell modules

Dimensions

Dimensions
