Sense Nano Specs

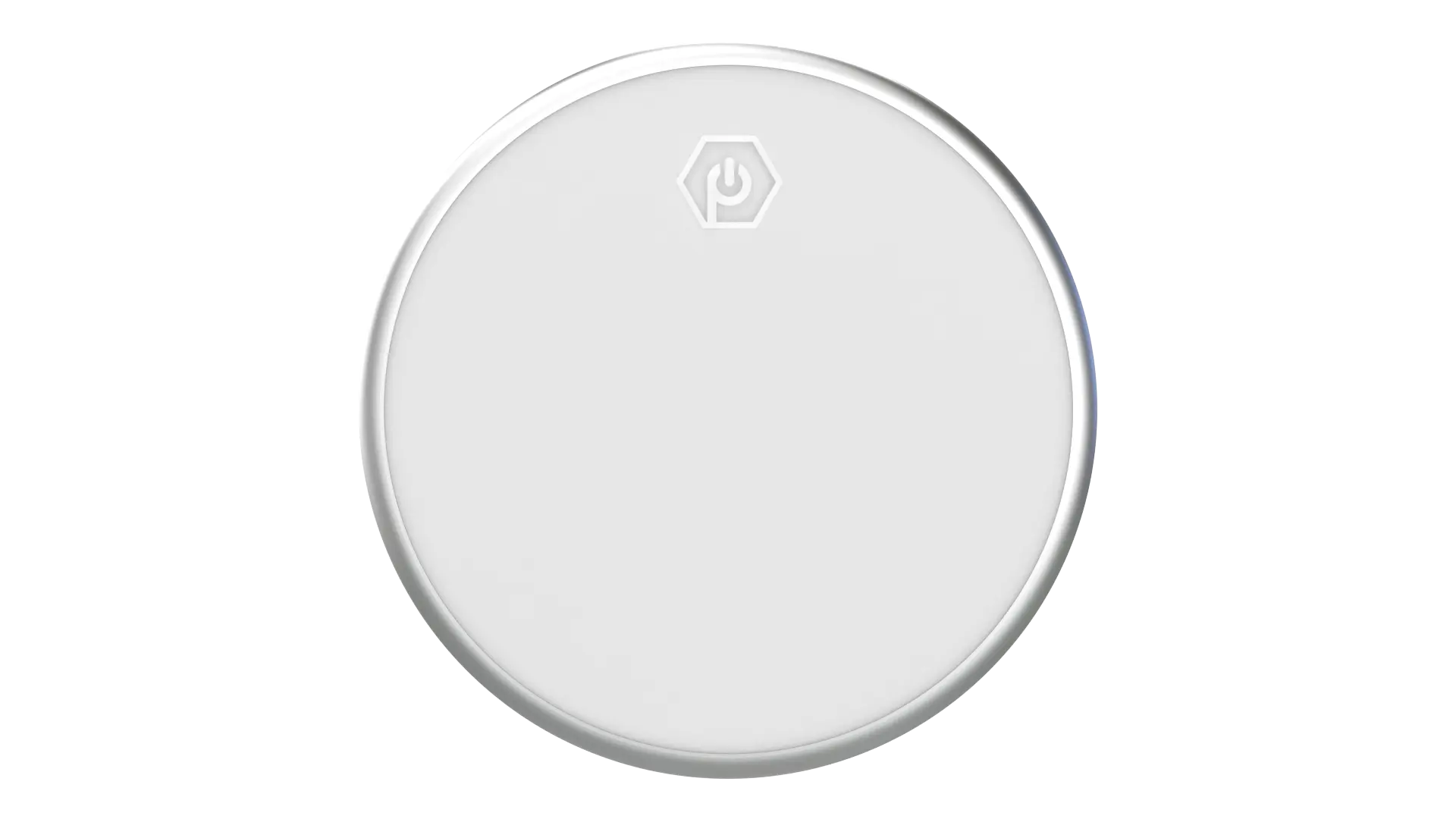

Sense Nano
The PassiveLogic Sense Nano sensor is a tiny, light-powered, multi-sensor environmental monitoring device that gathers building and occupancy data with no wires required. It connects wirelessly to Hive and Hive Mini controllers through PassiveLogic's enhanced mesh network and monitors temperature, radiant temperature, humidity, pressure, light, and air quality. External power optionally enables IAQ measurements, stronger wireless networking, and higher sampling rates.
Sensor Specifications
Weight
Less than 1 oz (24.5 g)
Diameter | Height
1.77 in (45 mm) | 0.45 in (11.33 mm)
Surface mounting
Bracket with adhesive included (screws optional)
Temperature
Accuracy: ±0.5°F at 77°F (±0.27°C at 25°C)
Radiant temperature
Accuracy: ±3.6°F at 77°F (±2°C at 25°C) when ambient temperature is no more than 9°F (5°C) different than radiant surfaces measured
Humidity
0 to 100% RH, ±3% RH (from 10 to 90% RH)
Atmospheric pressure
300 to 1100 hPa, ±0.6 hPa
Light level
0 to 10,000 lux (±10%)
Air quality (TVOC)
0 to 500 Index of Air Quality (IAQ), ±3 IAQ (wired only)
Networking & Communication
Bluetooth wireless communication
Light powered: 50 ft (15 m)
Wired for power: 70 ft (21.3 m)
1-Wire communication
Optional. See wired specifications section.
FCC ID
2A9S2-SNA01
Wire-Free Power
Light powered
Install location must have an independent reading of at least 615 lux for 4 hours per day
Battery autonomy
7–8 months battery life when fully charged
Optional Wired Specifications
Option 1: External power
24VAC or 12V–24VDC
Allows device to act as a signal repeater
Enables indoor air quality measurements (IAQ)
Option 2: 1-Wire protocol
5V 1-Wire standard speed communication
984 ft (300 m) maximum wire length
Requires a PassiveLogic 1-Wire master such as a Multi Cell module
Option 3: 1-Wire with additional power wire
Same as Option 2 with dedicated power wire instead of parasitic power
Wire gauge
18–22 AWG
Environmental Operating Conditions
Operating temperature
32 to 113°F (0 to 45°C)
Compensated temperature
32 to 113°F (0 to 45°C)
Storage temperature
-4 to 113°F (-20 to 45°C)
Operating humidity
10 to 90% RH
Storage humidity
0 to 99% RH (non-condensing)
Wireless Connectivity
Wireless mesh network
Communicates wirelessly with PassiveLogic Hive, Hive Mini, and powered Sense Nano devices
Wire-free operation
Operates using ambient or natural light while communicating wirelessly
Wireless repeater mode
Adding wired power enables the device to act as a wireless signal repeater
Network extension
Wired devices provide stronger signal strength, increased throughput, and extended network reach
Wiring & Installation
Why wire the device
Enable IAQ measurements
Support low-light locations
Extend communication distance
Enable 1-Wire communication
Create wireless repeaters
Wire insertion
Strip 0.25 in (7 mm), push into terminal, then gently pull to verify secure connection
Wire removal
Press lightly on the release tab using a removal tool

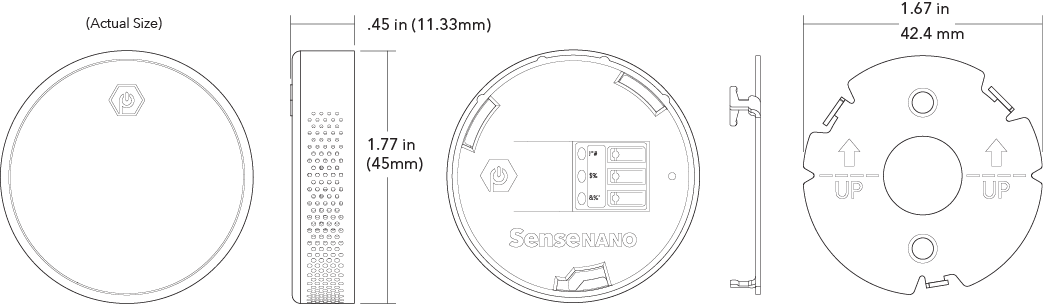

Dimensions
